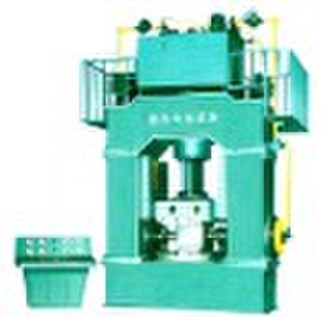

EY41 Three-way pipe Extruding Hydraulic Press

EY41 Three-way pipe Extruding Hydraulic Press 1. This series of hydraulic press apply to extrude the three-way pipe joint into shapes. The mold clamping force of the hydraulic press can adjust, also the side cylinder. The working pressure and speed of each cylinder can adjust. For the side cylinder, it can adjust by the speed control valve and reach to the same speed or it adopts electro-hydraulic proportion control and achieve the precise synchronization. the electric control is PLC program. It controls by the button and there is 3 operation ways including inching, manual and semi-automatic. It will be fulfilled according to the craft requirements: mold-closing to the adjusted pressure, the side cylinder advance to squeeze to the adjusted position. The side cylinder return the initial position and die sinking. The circle course has been finished. 2. This series of hydraulic press run stable, high-efficiency and be obbligato profession equipment of squeezing the three-way pipe joint technical parameters:Item UnitEY41-63EY41-100EY41-200EY41-315EY41-630EY41-630EY41-1000EY41-1500Four-columnFour-columnFour-columnFour-columnFour-columnFrame-styleFrame-styleFrame-styleNominal forceKN630100020003150630063001000015000side cylinder pressureKN250*3500*21000*32000*33150*35000*28000*212500*2Max. working pressureMPa2525252525252525Daylightmm500900112012501800120015001800Ram strokemm2306005006001000500800800Ejecting strokemm150100200200350350400400Height of table above floormm8008605506505006006001550Max-distance of LF cylinders’ pistonmm600600100011201800120014002000Max-distance between back cylinder to worktable’s centermm300300500450900///Height between side cylinder to worktablemm100120220320350320400500Ram speed Idlemm/s20160120801206060100Pressing4 610 2312 24106 13866 Return40130150601501008080Two side cylinders’ speed as same timemm/s171014 248 1663 53 63 5Motor powerKW5.51115.52230*259.551.5143.5Overall dimensionsFBmm15251700220025354790413242502000LR28703000480053555860485666504800Above floor2400326050154312/41275920624057803520Send or third cylinder’s locationKWDCDDAEEE
